Unit III: Document Stores - MongoDB#

3.1.1 The Core Characteristics#

The first defining characteristic is that documents are the fundamental unit of data. Unlike a relational row, a document can contain embedded sub-documents and arrays, letting you represent complex real-world objects naturally. A blog post document can contain the post body, an array of tags, and a nested author object — all in one place, retrieved with one database operation, no joins required.

The second is schema flexibility. In MongoDB specifically, collections don’t enforce a fixed schema by default. You can add a new field to some documents without migrating the entire collection. This is enormously useful when your data model evolves, which it always does in real projects.

The third is that document databases are built for horizontal scaling from the ground up, with sharding and replication baked into their design rather than bolted on afterward.

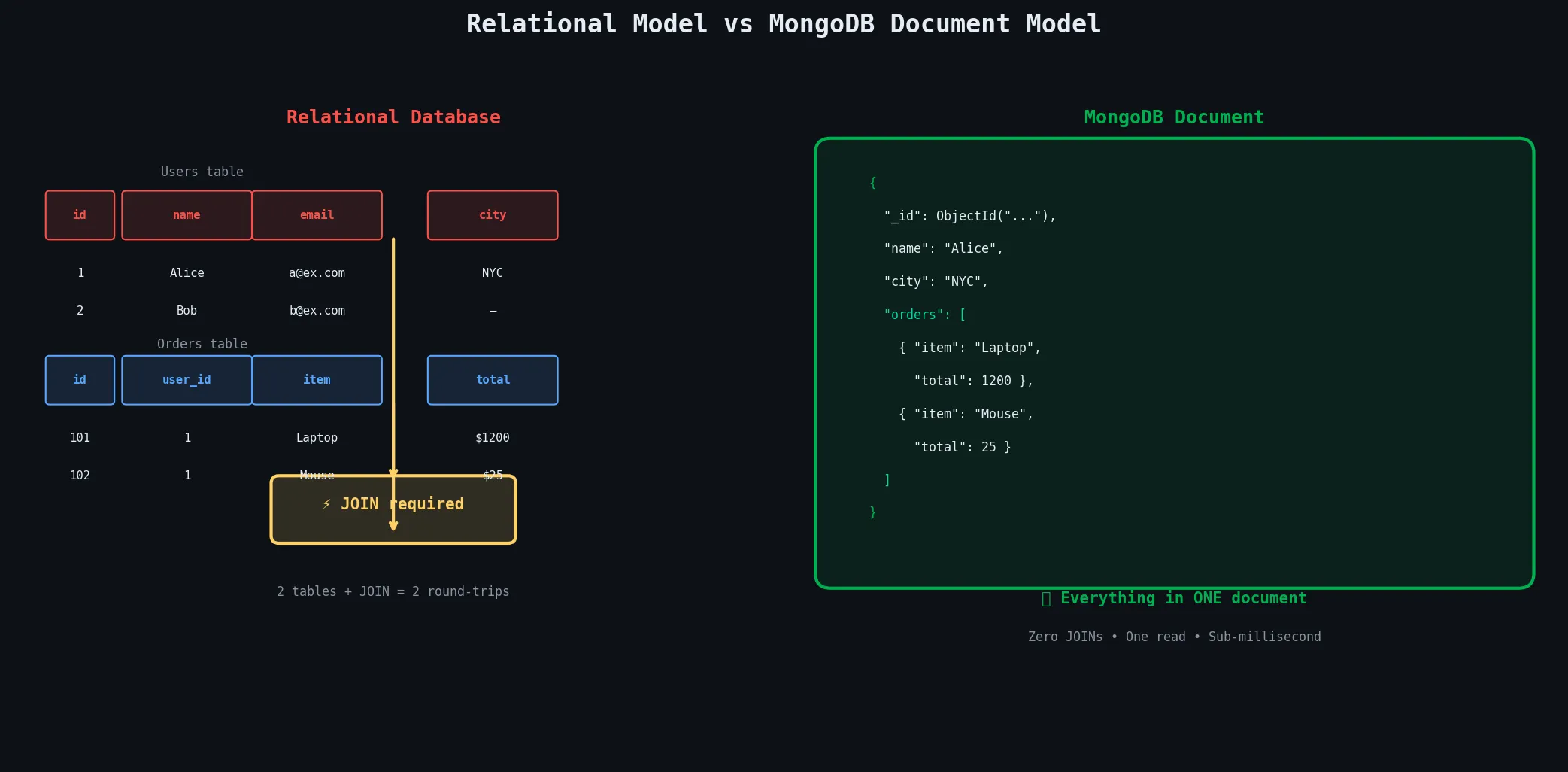

3.1.2 Comparing the Three Paradigms#

A key-value store offers maximum speed but only lets you look up data by its exact key. A document database sits in the sweet spot: you get a flexible, nested data model like key-value, but you can query any field in any document, create indexes, and run complex aggregations — giving you much of the power of relational databases without the rigid schema.

3.1.3 Where MongoDB Fits Best#

The use cases where you reach for MongoDB first are those where data naturally has a hierarchical or nested structure:

Product Catalogs — Every product has different attributes: a laptop has RAM, storage, battery life; a shirt has size, colour, fabric. In MongoDB, each product is a document with exactly the fields it needs.

Content Management Systems — Articles, blog posts, and pages each have rich, varying metadata.

User Profile Stores — Profiles that carry embedded data like addresses, preferences, or social links.

Real-time Analytics & Event Logging — High-throughput writes with flexible aggregation afterward.

Anywhere the shape of your data varies across records, and anywhere you want to avoid expensive JOINs at query time, MongoDB shines.

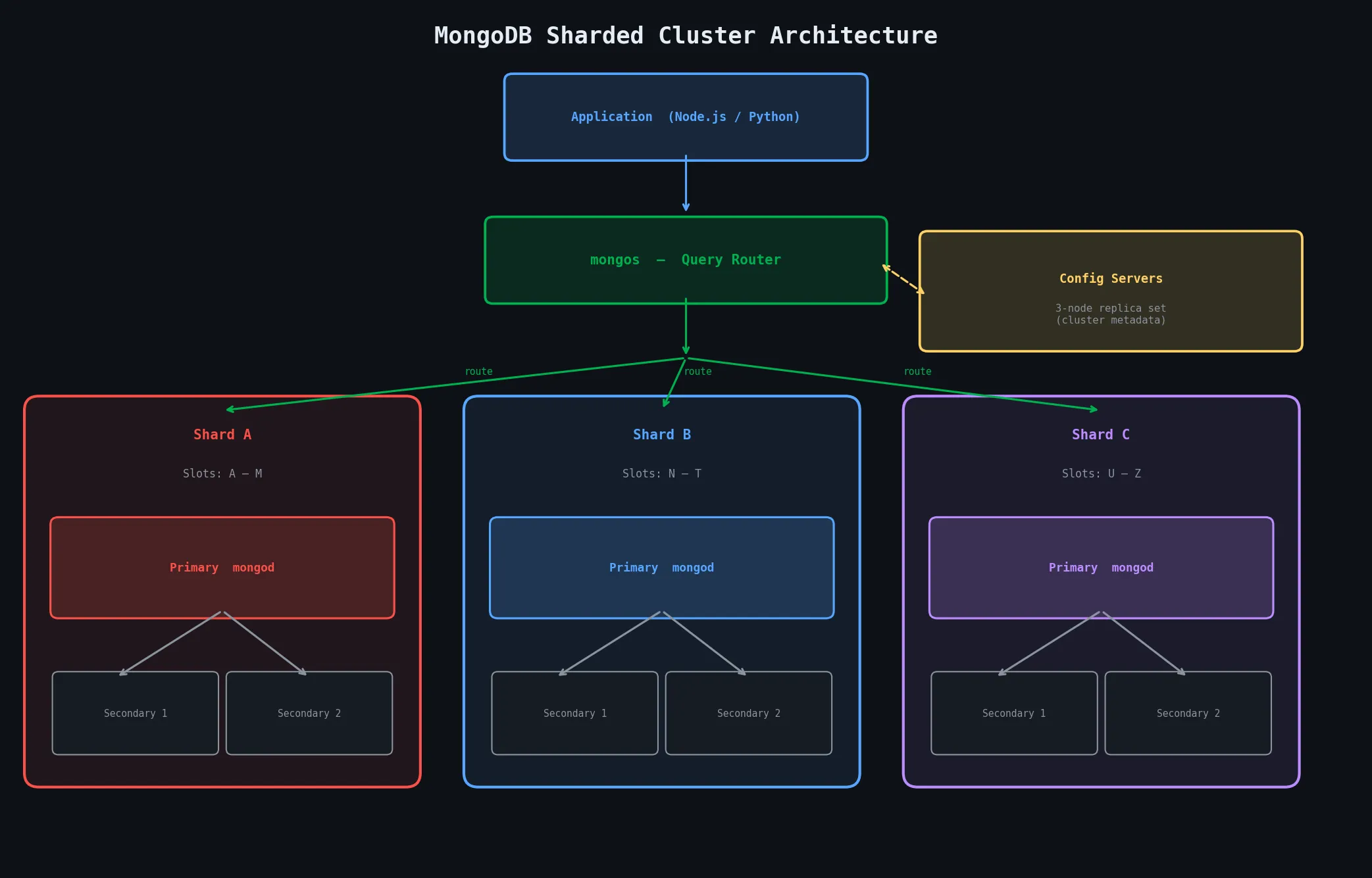

3.2.1 Core Components#

The heart of MongoDB is a process called mongod — the MongoDB Daemon. This is the actual database server: it receives queries, reads and writes data to the storage engine, manages indexes, handles replication, and enforces access control. In a simple single-server deployment, this is all you need.

In a sharded cluster, a second process called mongos enters the picture. The mongos is a query router. Your application connects to mongos instead of directly to any data-holding server. mongos receives the query, figures out which shard(s) hold the relevant data, forwards the query, collects the results, and merges them into a single response. From your application’s perspective, it looks like you’re talking to one database — the sharding is transparent.

The third component is the config server. Config servers store all the metadata about the cluster: which shard owns which range of data, what collections are sharded, and where each shard lives. They are deployed as a three-node replica set for redundancy. Every time mongos routes a query, it consults the config servers to know where to send the request.

3.2.2 Storage Engines#

The storage engine is the component inside mongod responsible for how data is physically stored on disk and read back into memory.

WiredTiger (default since MongoDB 3.2) is what you’ll use in essentially every production deployment. What makes it stand out is document-level concurrency control — it uses MVCC (Multiversion Concurrency Control) to let multiple readers and writers work simultaneously without blocking each other, as long as they’re touching different documents. It also supports transparent compression (snappy by default, zlib for higher ratios), which typically cuts your storage footprint by 50–80%. WiredTiger also maintains a write-ahead log (the journal) for crash recovery.

💡 Key Insight: WiredTiger’s document-level locking is a massive improvement over the old MMAPv1 engine that only had collection-level locking. Two simultaneous writes to different documents in the same collection don’t block each other at all.

The In-Memory storage engine stores all data in RAM and writes nothing to disk. Data is lost on shutdown or crash — deliberately. It exists for workloads where you need the absolute fastest possible reads/writes and the data is ephemeral: session stores, real-time leaderboards, or analytics aggregations you can afford to recompute.

3.2.3 Replication and Sharding — The Big Picture#

MongoDB handles scale through two orthogonal mechanisms:

Replication is about durability and availability — it keeps multiple copies of your data on different servers so that if one server dies, the others continue serving reads and writes.

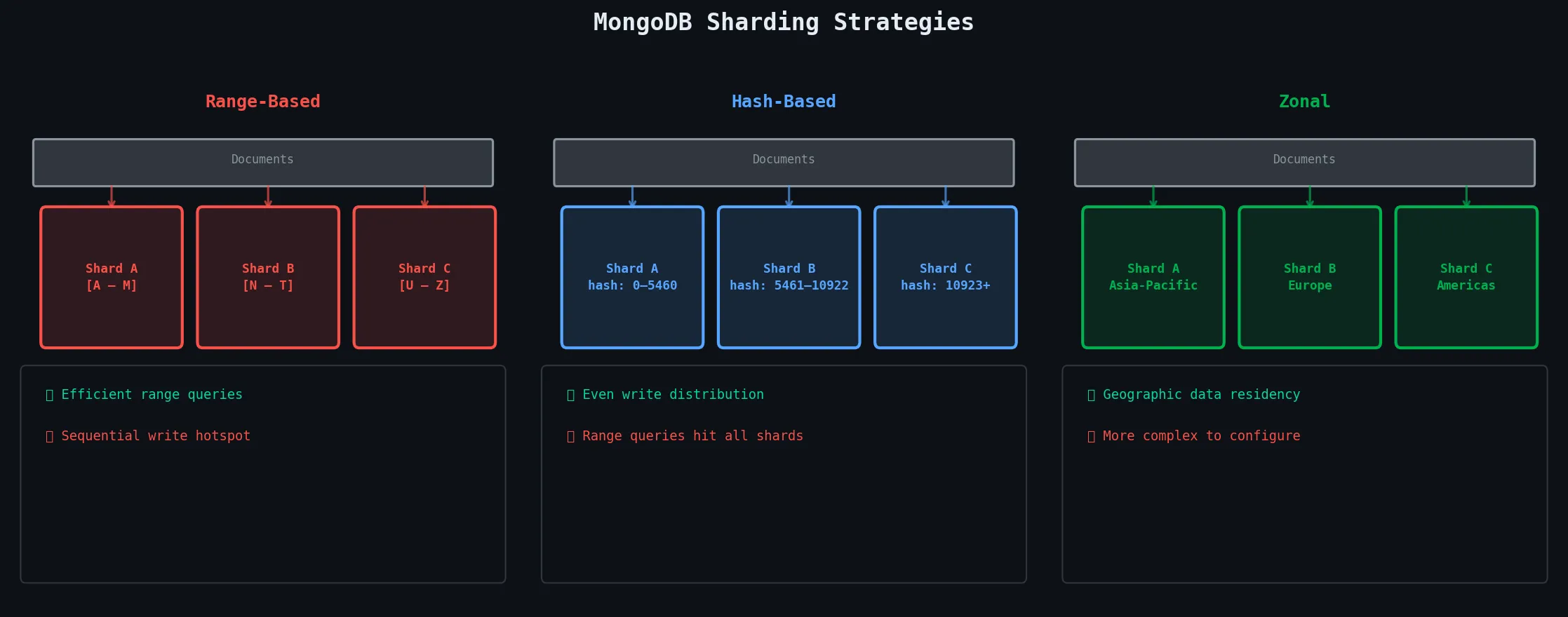

Sharding is about capacity and throughput — it splits data across multiple servers so no single machine needs to hold all of it.

These two concepts work together: in a sharded cluster, each shard is itself a replica set, giving you both distribution and redundancy simultaneously.

3.3.1 BSON — Binary JSON#

When you write a MongoDB document, you write it as JSON-like syntax. But internally, MongoDB stores and transmits data in a format called BSON — Binary JSON. BSON extends JSON with additional data types that JSON doesn’t support, encodes type information explicitly, and is designed for efficient binary traversal rather than human readability.

// A BSON document with diverse types
{
  "_id":       ObjectId("64f8a1c3b3a2d1e4f5g6h7i8"), // Auto-generated 12-byte ID
  "name":      "Alice Sharma",                        // String
  "age":       28,                                    // Int32
  "score":     98.6,                                  // Double
  "balance":   Decimal128("1024.50"),                 // High-precision decimal
  "createdAt": ISODate("2024-09-01T10:30:00Z"),       // Date
  "isActive":  true,                                  // Boolean
  "metadata":  null                                   // Null
}

Key BSON types beyond standard JSON:

3.3.2 Document Structure and Embedded Documents#

A MongoDB document is a BSON object with a maximum size of 16 MB. Within that limit, you can nest documents as deeply as you want and use arrays of any type, including arrays of embedded documents.

// A rich, nested document representing a user
{
  "_id": ObjectId("64f8a1c3b3a2d1e4f5g6h7i8"),
  "name": "Alice Sharma",
  "address": {                            // Embedded sub-document
    "street": "123 Norzin Lam",
    "city":   "Thimphu",
    "country":"Bhutan"
  },
  "skills": ["Python", "MongoDB", "Docker"],  // Array of strings
  "orders": [                             // Array of embedded documents
    { "item": "Laptop", "qty": 1, "price": 1200 },
    { "item": "Mouse",  "qty": 2, "price": 25   }
  ]
}

3.3.3 Collections and Databases#

Documents are grouped into collections, which are the MongoDB equivalent of tables. Unlike a relational table, a collection doesn’t enforce that all documents have the same fields — by default, you can insert any document into any collection.

When you insert the first document into a collection that doesn’t exist yet, MongoDB creates it automatically. The same applies to databases — you don’t create them explicitly, they come into existence the moment you write data to them.

One database can contain many collections, and one MongoDB server can contain many databases. Typically you use one database per application, organized by entity type: a users collection, a products collection, an orders collection, and so on.

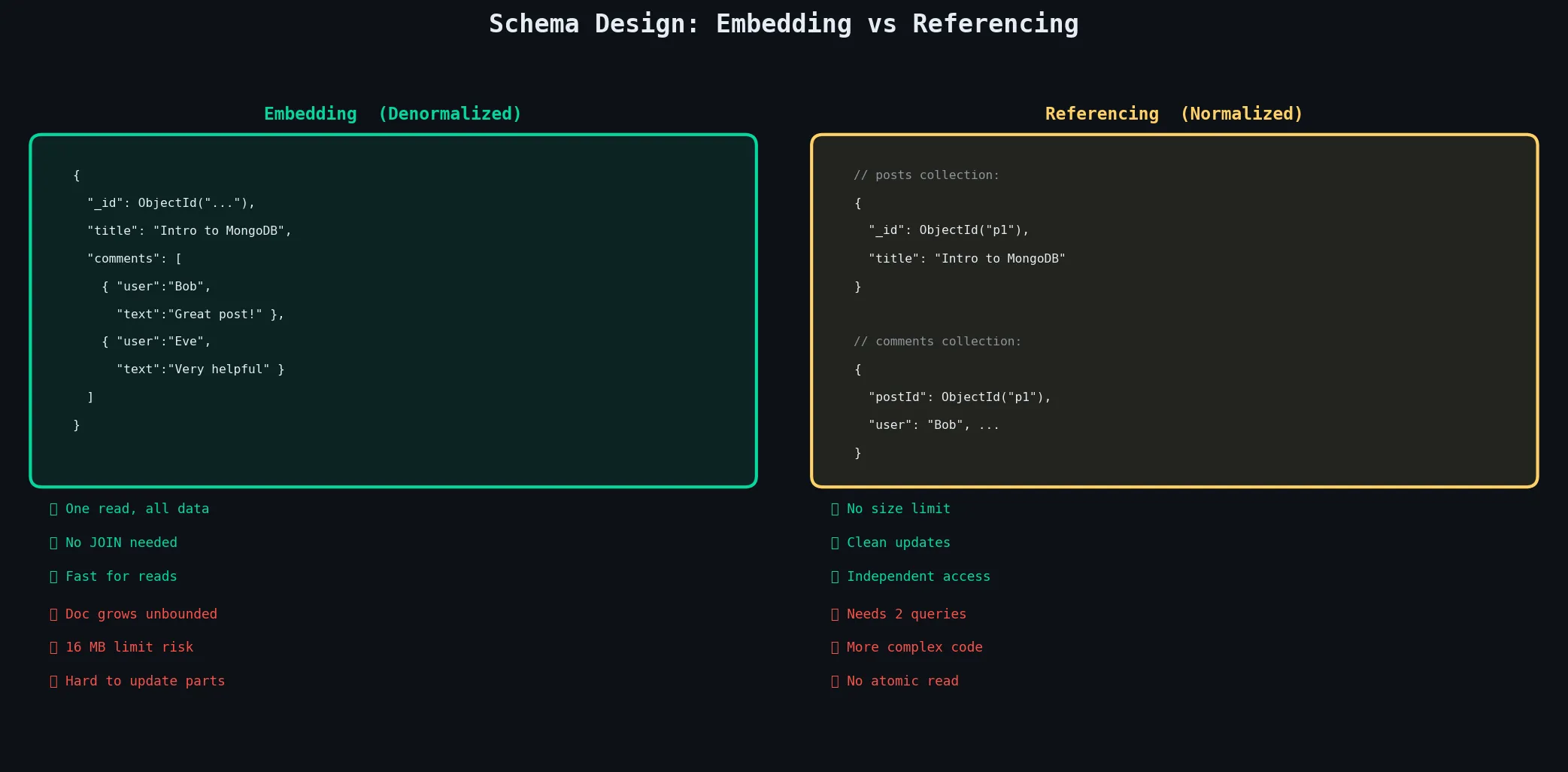

3.3.4 Schema Design Patterns#

This is the part of MongoDB that trips people up most, because they’re used to relational normalization rules. In MongoDB, schema design is driven by access patterns — how your application reads data — not by eliminating redundancy. The two fundamental choices you face are embedding versus referencing.

The rule: embed when the related data is always accessed together, when the embedded data is bounded in size, and when the relationship is one-to-one or one-to-few. Reference when the related data can grow to unlimited entries, when the related data is accessed independently of its parent, or when the same sub-document is referenced from many parent documents.

The 16 MB Limit: Every MongoDB document has a hard 16 MB size limit. If you embed an array that can grow without bounds — like comments on a viral post — you will eventually hit this wall. This is the clearest signal that you should use referencing instead of embedding.

3.4.1 Insert Operations#

// Insert a single document
db.users.insertOne({
  name:  "Alice Sharma",
  email: "alice@example.com",
  age:   28,
  city:  "Thimphu"
});
// Result: { acknowledged: true, insertedId: ObjectId("...") }

// Insert multiple documents in one operation
db.users.insertMany([
  { name: "Bob",   age: 32, city: "Paro"    },
  { name: "Carol", age: 25, city: "Thimphu" },
  { name: "Dave",  age: 40, city: "Punakha" }
], { ordered: false });
// ordered: false → if one fails, the rest still insert

insertMany is significantly faster than calling insertOne in a loop — it sends all documents in a single network round-trip.

3.4.2 Read Operations#

// Find all documents in the collection
db.users.find({});

// Find with a filter
db.users.find({ city: "Thimphu" });

// Projection: include only name and email, exclude _id
db.users.find(
  { city: "Thimphu" },
  { name: 1, email: 1, _id: 0 }
);

// Sort, limit, and skip (pagination)
db.users.find({ age: { $gte: 25 } })
  .sort({ age: 1 })    // 1 = ascending, -1 = descending
  .skip(0)
  .limit(10);

// findOne returns the first match directly (not a cursor)
db.users.findOne({ email: "alice@example.com" });

3.4.3 Update Operations#

Updates in MongoDB use update operators — special keywords prefixed with $ that describe what to change. The most important is $set, which updates specific fields without touching the rest of the document.

If you skip the update operator and pass a plain document as the second argument, you’re doing a replacement — the entire document gets overwritten.

// Update one field on one document
db.users.updateOne(
  { email: "alice@example.com" },      // filter
  { $set: { city: "Paro", age: 29 } } // update
);

// Update all matching documents
db.users.updateMany(
  { city: "Thimphu" },
  { $set: { region: "Western" } }
);

// Useful update operators
db.users.updateOne(
  { name: "Alice" },
  {
    $inc:    { age: 1 },              // Increment a numeric field
    $push:   { skills: "Docker" },    // Add to array
    $unset:  { tempField: "" },       // Remove a field
    $rename: { oldName: "newName" }   // Rename a field
  }
);

// Replace the whole document (only _id preserved)
db.users.replaceOne(
  { name: "Dave" },
  { name: "David", city: "Punakha", role: "admin" }
);

3.4.4 Delete Operations#

// Delete the first matching document
db.users.deleteOne({ email: "test@example.com" });

// Delete all matching documents
db.users.deleteMany({ isActive: false });

// Delete ALL documents in a collection (keep the collection and its indexes)
db.users.deleteMany({});

// Drop the entire collection (collection + indexes + metadata gone)
db.users.drop();

Safety habit: Always run a find with your filter first to confirm you’re targeting the right documents before running the delete.

3.5.1 Query Operators#

All query operators in MongoDB are prefixed with $ and are expressed as values inside a query document.

// ── Comparison operators ─────────────────────────────────────────────────
db.users.find({ age: { $eq:  28 } });                           // age = 28
db.users.find({ age: { $ne:  28 } });                           // age ≠ 28
db.users.find({ age: { $gt: 25, $lte: 40 } });                  // 25 < age ≤ 40
db.users.find({ city: { $in:  ["Thimphu", "Paro"] } });         // city in list
db.users.find({ city: { $nin: ["Guwahati"] } });                // city NOT in list

// ── Logical operators ────────────────────────────────────────────────────
db.users.find({ $and: [{ age: { $gte: 25 } }, { city: "Thimphu" }] });
db.users.find({ $or:  [{ city: "Thimphu" }, { city: "Paro" }] });
db.users.find({ age:  { $not: { $lt: 18 } } });

// ── Element operators ────────────────────────────────────────────────────
db.users.find({ phone: { $exists: true } });   // only docs that have the field
db.users.find({ age:   { $type: "int" } });    // only if age is an integer

// ── Array operators ──────────────────────────────────────────────────────
db.users.find({ skills: { $all: ["Python", "MongoDB"] } }); // has ALL of these
db.users.find({ skills: { $size: 3 } });                    // array has exactly 3
db.users.find({ orders: { $elemMatch: { price: { $gt: 1000 } } } }); // any element matches

// ── Dot notation to query nested fields ──────────────────────────────────
db.users.find({ "address.city": "Thimphu" });
db.users.find({ "orders.0.item": "Laptop" });   // index into array

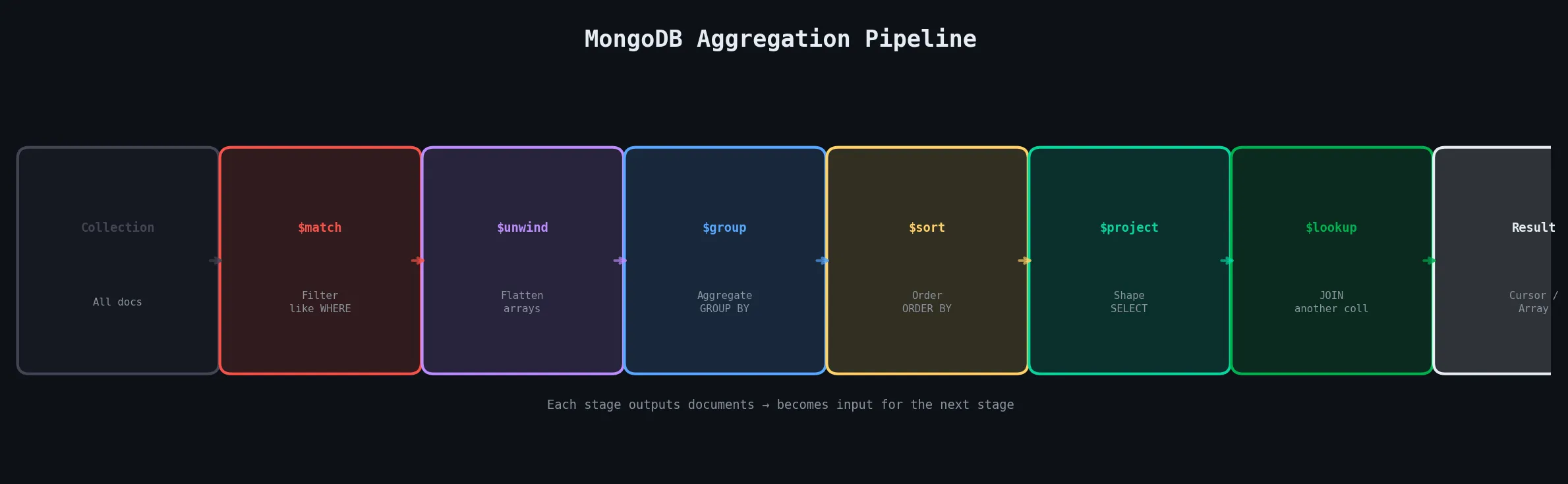

3.5.2 The Aggregation Framework#

The Aggregation Framework is MongoDB’s most powerful feature for data analysis. You build a pipeline — a sequence of stages — where each stage transforms the data and passes the result to the next stage.

// Count orders per city, only for users aged 25+, sorted by order count
db.users.aggregate([
  { $match:   { age: { $gte: 25 } } },      // Stage 1: filter (like WHERE)
  { $unwind:  "$orders" },                   // Stage 2: flatten orders array
  { $group: {                                // Stage 3: group and aggregate
      _id:          "$city",
      totalOrders:  { $sum: 1 },
      totalRevenue: { $sum: "$orders.price" },
      avgRevenue:   { $avg: "$orders.price" }
  }},
  { $sort:    { totalOrders: -1 } },         // Stage 4: descending
  { $limit:   5 },                           // Stage 5: top 5 only
  { $project: {                              // Stage 6: reshape output
      city:         "$_id",
      totalOrders:  1,
      totalRevenue: { $round: ["$totalRevenue", 2] },
      _id:          0
  }},
  { $lookup: {                               // Stage 7: JOIN with another collection
      from:         "regions",
      localField:   "city",
      foreignField: "cityName",
      as:           "regionInfo"
  }}
]);

3.5.3 Text Search and Geospatial Queries#

// Create a text index covering multiple fields
db.products.createIndex({ name: "text", description: "text" });

// Search for documents containing "noise cancelling"
db.products.find(
  { $text: { $search: "noise cancelling" } },
  { score: { $meta: "textScore" } }          // include relevance score
).sort({ score: { $meta: "textScore" } });   // sort by relevance

// Geospatial: create a 2dsphere index, then query by proximity
db.restaurants.createIndex({ location: "2dsphere" });
db.restaurants.find({
  location: {
    $near: {
      $geometry:    { type: "Point", coordinates: [89.6419, 27.4712] },
      $maxDistance: 5000   // 5 km in metres
    }
  }
});

3.5.4 Indexes and Query Optimization#

Without indexes, MongoDB scans every document in a collection to find matches — a COLLSCAN (collection scan). As collections grow, this becomes catastrophically slow. Indexes are pre-sorted data structures that let MongoDB jump directly to relevant documents.

// Single-field index (ascending)
db.users.createIndex({ email: 1 }, { unique: true });

// Compound index (ESR order: Equality first, Sort/Range after)
db.orders.createIndex({ status: 1, createdAt: -1 });

// Multikey index: automatically created when field holds an array
db.users.createIndex({ skills: 1 });   // indexes each element of skills array

// TTL index: auto-delete documents after a time period
db.sessions.createIndex({ createdAt: 1 }, { expireAfterSeconds: 3600 });

// EXPLAIN: see how MongoDB executes a query
db.users.find({ city: "Thimphu" }).explain("executionStats");
// Look for: winningPlan.stage = "IXSCAN" (good), not "COLLSCAN" (bad)

// List all indexes on a collection
db.users.getIndexes();

// Drop an index
db.users.dropIndex({ email: 1 });

How to Read EXPLAIN: When you run explain("executionStats"), stage should be IXSCAN (using an index), not COLLSCAN (full scan). The field totalDocsExamined should be close to nReturned — a huge gap means your index isn’t selective enough.

The ESR Rule for compound indexes: put Equality fields first, Sort fields second, Range fields last.

3.6.1 Multi-Document ACID Transactions#

ACID stands for Atomicity, Consistency, Isolation, and Durability — the classic guarantees of a reliable transaction system. A MongoDB multi-document transaction groups multiple operations together so that either all of them succeed or none of them take effect.

// Transfer credits between two users atomically
const session = client.startSession();

try {
  session.startTransaction({
    readConcern:  { level: "snapshot" },
    writeConcern: { w: "majority" }
  });

  await db.accounts.updateOne(
    { userId: "alice" },
    { $inc: { balance: -100 } },
    { session }
  );
  await db.accounts.updateOne(
    { userId: "bob" },
    { $inc: { balance: +100 } },
    { session }
  );

  await session.commitTransaction();   // Both writes visible atomically

} catch (err) {
  await session.abortTransaction();    // Neither write takes effect

} finally {
  session.endSession();
}

Use Transactions Sparingly: Multi-document transactions carry performance overhead — they hold locks, require coordination across nodes, and can cause contention. If you find yourself reaching for transactions often, it’s a sign you should reconsider your schema design. Embedding related data that changes together eliminates the need for transactions entirely in most cases.

3.6.2 Read and Write Concerns#

Read and write concerns let you tune the consistency-performance trade-off for individual operations or transactions.

Read concern controls which version of data a read operation sees. local returns the most recent data on the queried node (may not be replicated yet). majority returns only data confirmed by most nodes — stronger consistency, slightly more latency. linearizable provides the strongest guarantee but applies only to single-document reads.

3.6.3 Consistency in Distributed Environments#

In a distributed system, you can’t have perfect consistency and perfect availability simultaneously (the CAP theorem). MongoDB defaults to strong consistency for the primary, and eventual consistency for reads from secondaries.

If you read from a secondary (readPreference: "secondary"), you might see slightly stale data because replication is asynchronous. This is usually acceptable for read-heavy workloads like dashboards. But for anything where freshness is critical — showing a user their own recent changes — you should read from the primary or use a read concern of majority.

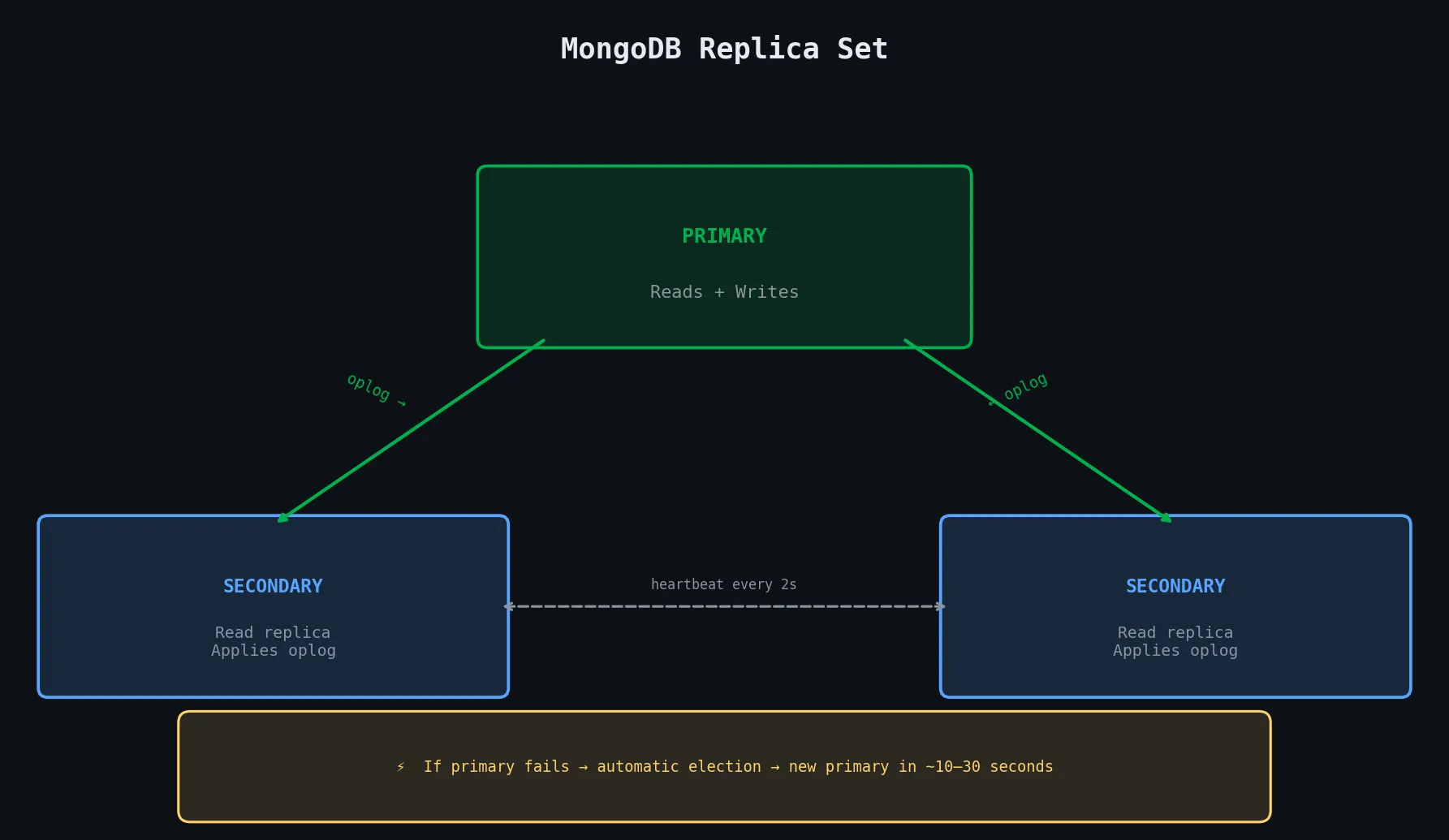

3.7.1 Replication and Replica Sets#

A replica set is a group of MongoDB servers that all hold the same data. One node is the Primary — it receives all writes. The remaining nodes are Secondaries — they replicate the primary’s operations log (the oplog) and apply the same writes to their own copy of the data.

If the primary fails, the secondaries hold an election and promote one of themselves to become the new primary, usually within 10–30 seconds.

Replica sets need an odd number of vote-holding members to avoid split-brain scenarios. In a three-member set, any two members form a quorum. If you want to add a fourth server but don’t want to pay for a full data-holding replica, you can add an Arbiter — a lightweight process that votes in elections but stores no data.

3.7.2 Sharding Strategies and Shard Keys#

Sharding distributes data across multiple replica sets (called shards). The most critical decision in a sharded cluster is choosing the shard key — the field MongoDB uses to decide which shard owns each document. Get this wrong and you’ll end up with hotspot shards that handle most of the traffic while others sit idle.

3.7.3 Horizontal Scaling and Load Balancing#

The beauty of MongoDB’s sharding architecture is that scaling horizontally is operationally simple. When a shard becomes too full or too hot, you add a new shard. MongoDB’s balancer process — which runs on the config servers — automatically migrates chunks (ranges of data) from overloaded shards to the new one in the background, without any downtime and without changing application code.

For read-heavy workloads, you can also add more secondaries to each shard’s replica set, which your application can read from using readPreference: "secondaryPreferred".

🌍 Real World — MongoDB Atlas at Scale: Companies like Amadeus (airline reservations) and Verizon run MongoDB clusters with hundreds of shards spanning billions of documents. MongoDB Atlas handles the entire lifecycle — adding shards, migrating chunks, index building — behind a managed UI.

3.8.1 MongoDB Atlas — The Cloud-Native Choice#

Atlas is MongoDB’s fully-managed cloud database service, available on AWS, Azure, and GCP. Instead of provisioning servers, installing MongoDB, configuring replica sets, setting up backups, and managing upgrades yourself, you click a few buttons in the Atlas UI and get a production-grade cluster in minutes.

Atlas handles replication, automated backups with point-in-time recovery, monitoring with intelligent alerts, performance advisor (it suggests indexes for slow queries), encryption at rest and in transit, and auto-scaling.

What’s most impressive about Atlas is its global distribution features. You can create a global cluster that spans multiple cloud regions, and Atlas will automatically route reads to the nearest region for low latency while keeping writes consistent.

3.8.2 MongoDB Compass — See Your Data Visually#

Compass is MongoDB’s official desktop GUI. It connects to any MongoDB deployment (local or Atlas) and gives you a visual interface for:

• Exploring collections and documents
• Running and building queries
• Building aggregation pipelines with drag-and-drop stages
• Analyzing document schemas
• Managing indexes
• Viewing query execution plans

The embedded aggregation pipeline builder is particularly useful when you’re building complex multi-stage pipelines and want to see the output of each stage interactively.

3.8.3 Mongoose — Structure for Node.js#

MongoDB itself is schemaless, which is great for flexibility but can become chaotic in a team environment. Mongoose is an ODM (Object Data Modeler) for Node.js that adds a schema layer on top of MongoDB. With Mongoose, you define the shape of your documents in code, and it enforces that shape when you save data — providing type casting, validation, query helpers, and middleware hooks.

const mongoose = require('mongoose');

// Define a schema
const userSchema = new mongoose.Schema({
  name:     { type: String,  required: true, trim: true },
  email:    { type: String,  required: true, unique: true, lowercase: true },
  age:      { type: Number,  min: 0, max: 150 },
  skills:   [String],
  address:  {
    city:    String,
    country: { type: String, default: "Bhutan" }
  },
  createdAt: { type: Date, default: Date.now }
});

// Add a method to the schema
userSchema.methods.greet = function() {
  return `Hello, I'm ${this.name}`;
};

// Compile the model from the schema
const User = mongoose.model('User', userSchema);

// Use it like any class
const alice = new User({ name: 'Alice', email: 'alice@example.com', age: 28 });
await alice.save();

// Query with Mongoose's chainable API
const users = await User.find({ age: { $gte: 25 } })
  .select('name email')
  .sort('-createdAt')
  .limit(10);

3.8.4 MongoDB Charts and BI Connector#

MongoDB Charts is a visualization tool built directly into Atlas. You connect it to a collection and build dashboards — bar charts, line charts, maps, scatter plots — without writing any aggregation queries yourself. Particularly useful for stakeholder-facing dashboards where your business team wants to see data without a developer writing a new report each time.

The MongoDB BI Connector acts as a MySQL-compatible layer in front of MongoDB, translating SQL queries from BI tools like Tableau, Power BI, or Looker into MongoDB aggregation pipelines. Your analytics team can keep using the SQL tools they already know while the engineering team uses MongoDB on the backend — no friction, no migration required.
