Active Directory Functionality#

Role	Description
Schema Master	Manages the read/write copy of the Active Directory schema, which defines all object classes and attributes in AD. Only one schema master exists per forest.
Domain Naming Master	Ensures unique domain names across the forest and manages additions/removal of domains. Prevents creation of duplicate domain names. Only one per forest.
Relative ID (RID) Master	Assigns blocks of RIDs to DCs within a domain to ensure unique SIDs for each object. Prevents duplication of object SIDs. Only one RID Master per domain.
PDC Emulator	Acts as the Primary Domain Controller. Handles time synchronization, password changes, account lockouts, and Group Policy updates. Responds to legacy authentication requests. One per domain.
Infrastructure Master	Translates GUIDs, SIDs, and DNs between domains. Essential for proper display of cross-domain object names in multi-domain forests. Only one per domain (not needed if all DCs are GCs).

Domain Functional Level	Features Available	Supported Domain Controller Operating Systems
Windows 2000 Native	- Universal groups (distribution and security)

Group nesting
Group conversion
SID history | Windows Server 2008 R2, 2008, 2003, 2000 | | Windows Server 2003 | - netdom.exe domain management
lastLogonTimestamp attribute
Well-known users and computers containers
Constrained delegation
Selective authentication | Windows Server 2012 R2, 2012, 2008 R2, 2008, 2003 | | Windows Server 2008 | - DFS replication for SYSVOL
AES 128/256 support for Kerberos
Fine-grained password policies | Windows Server 2012 R2, 2012, 2008 R2, 2008 | | Windows Server 2008 R2 | - Authentication mechanism assurance
Managed Service Accounts | Windows Server 2012 R2, 2012, 2008 R2 | | Windows Server 2012 | - KDC support for claims
Compound authentication
Kerberos armoring | Windows Server 2012 R2, 2012 | | Windows Server 2012 R2 | - Protected Users group enhancements
Authentication Policies
Authentication Policy Silos | Windows Server 2012 R2 | | Windows Server 2016 | - Smart card required for interactive logon
Enhanced Kerberos features
New credential protection features | Windows Server 2019, 2016 |

Forest functional levels have introduced a few key capabilities over the years:

Version	Capabilities
Windows Server 2003	Introduction of forest trust, domain renaming, and Read-Only Domain Controllers (RODC).
Windows Server 2008	All new domains default to the Server 2008 domain functional level. No additional new forest-level features.
Windows Server 2008 R2	Active Directory Recycle Bin allows restoring deleted objects when AD DS is running.
Windows Server 2012	All new domains default to Server 2012 domain functional level. No additional new forest-level features.
Windows Server 2012 R2	All new domains default to Server 2012 R2 domain functional level. No additional new forest-level features.
Windows Server 2016	Privileged Access Management (PAM) via Microsoft Identity Manager (MIM).

Trust#

A trust is used to establish forest-forest or domain-domain authentication, allowing users to access resources in (or administer) another domain outside of the domain their account resides in.
A trust creates a link between the authentication systems of two domains.

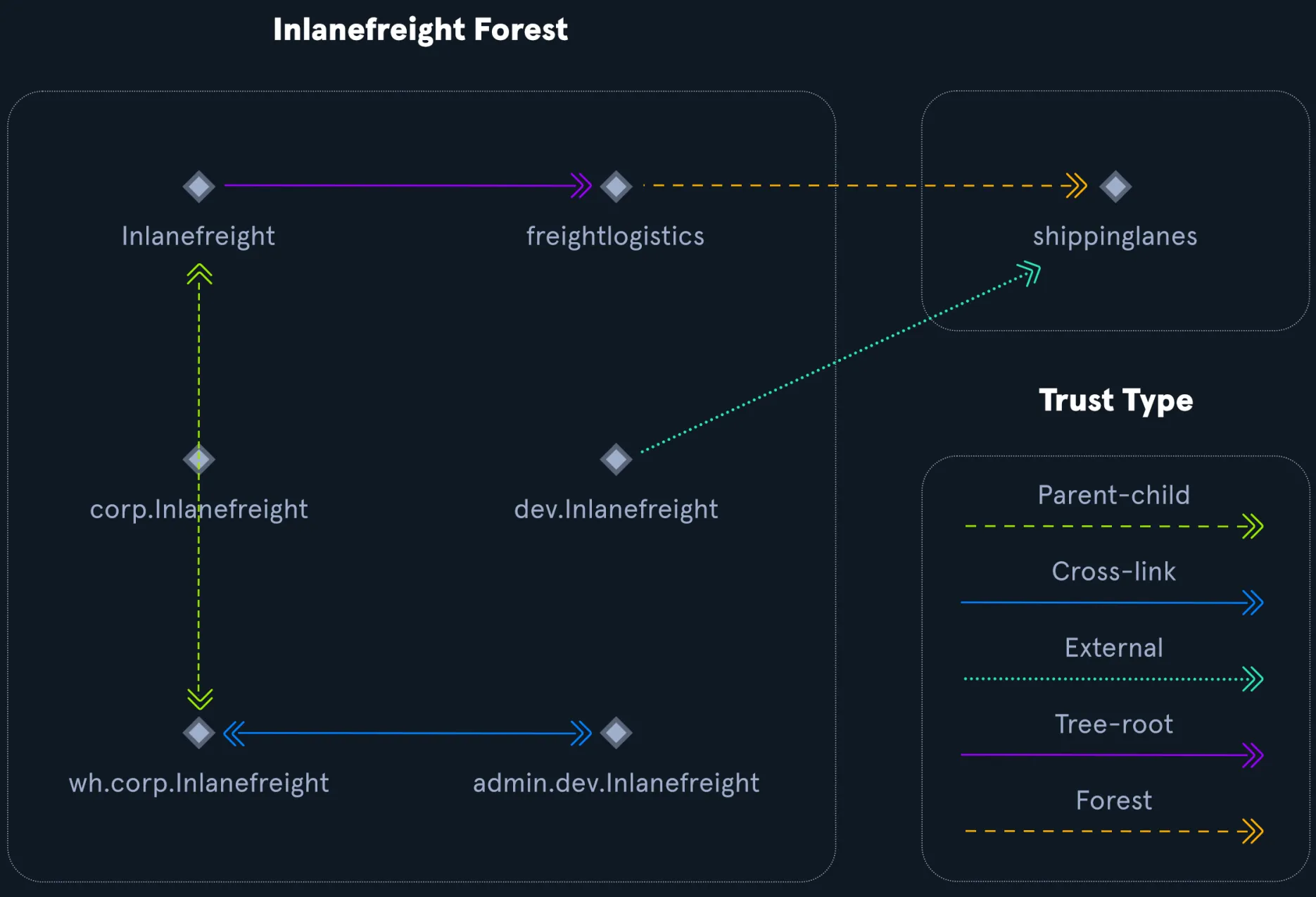

Trust Type	Description
Parent-child	Domains within the same forest. The child domain has a two-way transitive trust with the parent domain.
Cross-link	A trust between child domains (in different trees or branches) within the same forest to optimize and speed up authentication paths.
External	A non-transitive trust between two separate domains in different forests that are not already joined by a forest trust. Uses SID filtering.
Tree-root	A two-way transitive trust between a forest root domain and a new tree root domain created within the same forest. Established during domain setup.
Forest	A transitive trust between the root domains of two separate forests, allowing access across all domains in both forests.

alt text

Trusts help different domains or forests in a network allow users to access resources from each other.

Transitive trust: Trust passes along. If Domain A trusts Domain B, and Domain B trusts Domain C, then Domain A also trusts Domain C.
Non-transitive trust: Trust does not pass along. Domain A only trusts Domain B, but not who Domain B trusts.

Trusts can also be:

Two-way (bidirectional): Both domains trust each other. Users from both sides can access each other’s resources.
One-way: Only one domain trusts the other. Only users from the trusted domain can access the trusting domain’s resources.

note

Sometimes trusts are set up carelessly, which may open up security risks.
Companies that merge or acquire others might unintentionally allow too much access between networks.
Hackers can use these poorly set-up trusts to steal credentials or gain admin access in the main domain.
